| Specification | Details |
|---|---|

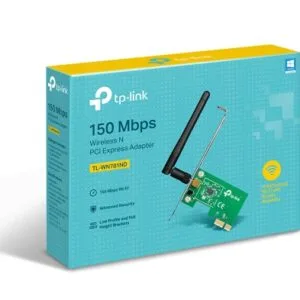

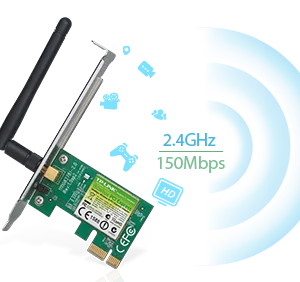

| Model | TP-LINK TL-WN781ND |
| Product Type | Wireless PCI Express Adapter |
| Wireless Standard | IEEE 802.11b/g/n |
| Interface | PCI Express (PCIe x1) |
| Wireless Speed | Up to 150Mbps |
| Frequency | 2.4GHz (2.400–2.4835GHz) |
| Antenna | 1 × Detachable 2dBi Omni-Directional Antenna |
| Antenna Connector | RP-SMA |
| Wireless Modes | Infrastructure Mode, Ad-Hoc Mode |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Modulation | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| Transmit Power | <20dBm (EIRP) |
| Receiver Sensitivity | Up to -68dBm @150Mbps |
| Operating System Support | Windows XP, Vista, 7, 8, 8.1, 10, Linux |
| WPS Button | Yes |
| LED Indicator | Status |
| Dimensions (L × W × H) | 120.8 × 78.5 × 21.5 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%–90% RH (Non-condensing) |
| Storage Humidity | 5%–90% RH (Non-condensing) |
| Package Contents | TL-WN781ND Adapter, Low-Profile Bracket, Quick Installation Guide, Resource CD |
